shiro2

Shiro 五表整合

1.环境准备

  • 导入springboot_shiro项目，并执行menu.sql

  • 导入ShiroConfig

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    package com.cjc.config;

    import com.cjc.realm.LoginRealm;
    import org.apache.shiro.authc.credential.HashedCredentialsMatcher;
    import org.apache.shiro.spring.web.ShiroFilterFactoryBean;
    import org.apache.shiro.web.filter.mgt.DefaultFilter;
    import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
    import org.springframework.context.annotation.Bean;
    import org.springframework.context.annotation.Configuration;

    import java.util.LinkedHashMap;

    /**
     */
    @Configuration
    public class ShiroConfig {

        @Bean
        public LoginRealm loginRealm(){
            LoginRealm loginRealm = new LoginRealm();
            loginRealm.setCredentialsMatcher(hashedCredentialsMatcher());
            return loginRealm;
        }

        @Bean
        public DefaultWebSecurityManager defaultWebSecurityManager(){
            DefaultWebSecurityManager defaultWebSecurityManager = new DefaultWebSecurityManager();
            //关联loginRealm
            defaultWebSecurityManager.setRealm(loginRealm());
            return defaultWebSecurityManager;
        }

        @Bean
        public ShiroFilterFactoryBean shiroFilterFactoryBean(){
            ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean();
            //设置安全管理器
            shiroFilterFactoryBean.setSecurityManager(defaultWebSecurityManager());
            //设置拦截路径
            LinkedHashMap<String, String> map = new LinkedHashMap<>();
            map.put("/loginController/**", DefaultFilter.anon.name());
            //放开js静态资源
            map.put("/js/**", DefaultFilter.anon.name());
            //退出登录
            map.put("/logout", DefaultFilter.logout.name());
            //其余路径 统统拦截
            map.put("/**", DefaultFilter.authc.name());

            //放入过滤器中
            shiroFilterFactoryBean.setFilterChainDefinitionMap(map);
            //设置登录页面
            shiroFilterFactoryBean.setLoginUrl("/loginController/toLogin");
            //设置没有权限页面
            shiroFilterFactoryBean.setUnauthorizedUrl("/loginController/unauthorizedurl");
            return shiroFilterFactoryBean;
        }


            @Bean
            public HashedCredentialsMatcher hashedCredentialsMatcher(){
                HashedCredentialsMatcher hash = new HashedCredentialsMatcher();
                //指定加密方式
                hash.setHashAlgorithmName("md5");
                //指定加密次数
                hash.setHashIterations(7);
                //指定编码
                hash.setStoredCredentialsHexEncoded(true);

                return hash;
            }
    }

2.开发五表的登录认证

  • 创建LoginRealm类
1
2
3
4
5
6
7
8
9
10
11
12
13
public class LoginRealm extends AuthorizingRealm {
    @Autowired
    private PersonServiceI personServiceI;
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        return null;
    }

    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {
        return null;
    }
}
  • 修改ShiroConfig类,更换成自己的LoginRealm类并且设置拦截路径
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
@Configuration
public class ShiroConfig {

    @Bean
    public LoginRealm loginRealm(){
        LoginRealm loginRealm = new LoginRealm();
        loginRealm.setCredentialsMatcher(hashedCredentialsMatcher());
        return loginRealm;
    }

    @Bean
    public DefaultWebSecurityManager defaultWebSecurityManager(){
        DefaultWebSecurityManager defaultWebSecurityManager = new DefaultWebSecurityManager();
        //关联loginRealm
        defaultWebSecurityManager.setRealm(loginRealm());
        return defaultWebSecurityManager;
    }

    @Bean
    public ShiroFilterFactoryBean shiroFilterFactoryBean(){
        ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean();
        //设置安全管理器
        shiroFilterFactoryBean.setSecurityManager(defaultWebSecurityManager());
        //设置拦截路径
        LinkedHashMap<String, String> map = new LinkedHashMap<>();
        map.put("/loginController/**", DefaultFilter.anon.name());
        //放开js静态资源
        map.put("/js/**", DefaultFilter.anon.name());
        //退出登录
        map.put("/logout", DefaultFilter.logout.name());
        //其余路径 统统拦截
        map.put("/**", DefaultFilter.authc.name());

        //放入过滤器中
        shiroFilterFactoryBean.setFilterChainDefinitionMap(map);
        //设置登录页面
        shiroFilterFactoryBean.setLoginUrl("/loginController/toLogin");
        //设置没有权限页面
        shiroFilterFactoryBean.setUnauthorizedUrl("/loginController/unauthorizedurl");
        return shiroFilterFactoryBean;
    }


        @Bean
        public HashedCredentialsMatcher hashedCredentialsMatcher(){
            HashedCredentialsMatcher hash = new HashedCredentialsMatcher();
            //指定加密方式
            hash.setHashAlgorithmName("md5");
            //指定加密次数
            hash.setHashIterations(5);
            //指定编码
            hash.setStoredCredentialsHexEncoded(true);

            return hash;
        }
}

  • 修改原始登录逻辑,换成shiro控制
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
@RequestMapping("login")
    @ResponseBody
    public ResponseResult login(HttpServletRequest request, String pname, String pwd, Model model) throws Exception {
        //判断用户名和密码是否为空
        if(StrUtil.isEmpty(pname)||StrUtil.isEmpty(pwd)){
            return new ResponseResult(ResultConstant.USERNAME_PASSWORD_NULL_ERROR_CODE, ResultConstant.USERNAME_PASSWORD_NULL_ERROR_DATA);
        }
        //创建subject对象
        Subject subject = SecurityUtils.getSubject();
        //封装数据
        UsernamePasswordToken tok = new UsernamePasswordToken(pname, pwd);
        try {
            //校验用户名
            subject.login(tok);
            return new ResponseResult(ResultConstant.LOGIN_SUCCESS_CODE, ResultConstant.LOGIN_SUCCESS_DATA);
        } catch (UnknownAccountException e) {
            e.printStackTrace();
            return new ResponseResult(ResultConstant.USERNAME_PASSWORD_ERROR_CODE, ResultConstant.USERNAME_PASSWORD_ERROR_DATA);
        }catch (IncorrectCredentialsException e){
            return new ResponseResult(ResultConstant.USERNAME_PASSWORD_ERROR_CODE, ResultConstant.USERNAME_PASSWORD_NULL_ERROR_DATA);
        }
    }
  • 在LoginRealm中增加登录判断代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
public class LoginRealm extends AuthorizingRealm {
    @Autowired
    private PersonServiceI personServiceI;
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        return null;
    }

    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {
        //强转参数
        UsernamePasswordToken token = (UsernamePasswordToken)authenticationToken;
        //从数据库中获取对象
        TPerson person = personServiceI.findPersonByName(token.getUsername());
        //判断
        if(person==null){
            return null;
        }
        //校验密码
        SimpleAuthenticationInfo loginRealm = new SimpleAuthenticationInfo(person, person.getPwd(), ByteSource.Util.bytes(person.getSalt()), "loginRealm");
        return loginRealm;
    }
}

  • 修改获取树形菜单代码
1
2
3
4
5
6
7
8
9
10
11
//查询treeView菜单树
@RequestMapping("/getMenu")
@ResponseBody
public List<Map<String,Object>> getMenu(HttpServletRequest request){
    //根据用户id查询菜单树
    //		HttpSession session = request.getSession();
    //		TPerson person =  (TPerson) session.getAttribute("user");
    TPerson tPerson= (TPerson)SecurityUtils.getSubject().getPrincipal();
    List<Map<String,Object>> menus = menuservice.getMenu(tPerson.getPid());
    return menus;
}

3.开发五表的权限认证

通过上面测试发现，只要是登录成功的用户，在改变访问地址后，依旧可以访问相关路径的资源，因此需要给各个资源加入权限认证。

1681625969247

  • 在ShiroConfig中加入权限路径
1
2
3
 //配置用户管理，角色管理拦截路径
map.put("/personController/list", "perms[person-list]");
map.put("/roleController/list", "perms[role-list]");
  • 测试

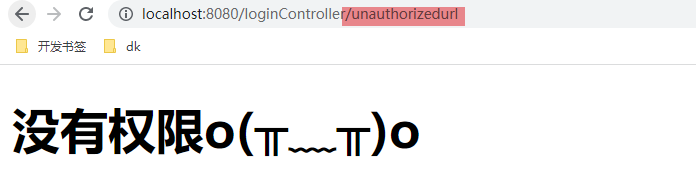

1681626878494

  • 配置用户管理，角色管理权限
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
@Autowired
private PersonServiceI personServiceI;
@Autowired
private MenuServiceI menuServiceI;
@Override
protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
    //获取用户信息
    TPerson tPerson = (TPerson)SecurityUtils.getSubject().getPrincipal();
    //根据当前用户id获取menu权限列表
    List<String> menuByPersonPerms = menuServiceI.findMenuByPersonPerms(tPerson.getPid());
    //创建对象
    SimpleAuthorizationInfo sim = new SimpleAuthorizationInfo();
    sim.addStringPermissions(menuByPersonPerms);
    return sim;
}

注意：

findMenuByPersonPerms方法可以通过修改mapper.xml文件获取权限字符串列表

1
2
3
4
5
6
7
8
9
10
11
12
13
<!-- 根据用户id，查询用户所拥有的perms权限列表 -->
<select id="findMenuByPersonPerms" resultType="string">
    SELECT DISTINCT m.perms FROM menu m
    LEFT JOIN role_menu rm ON m.id = rm.menu_id
    LEFT JOIN t_role r ON rm.role_id = r.role_id
    LEFT JOIN person_role pr ON r.role_id = pr.role_id
    LEFT JOIN t_person p ON pr.person_id = p.pid
    <where>
        <if test=" pid != null ">
            and p.pid = #{pid}
        </if>
    </where>
</select>
  • 测试

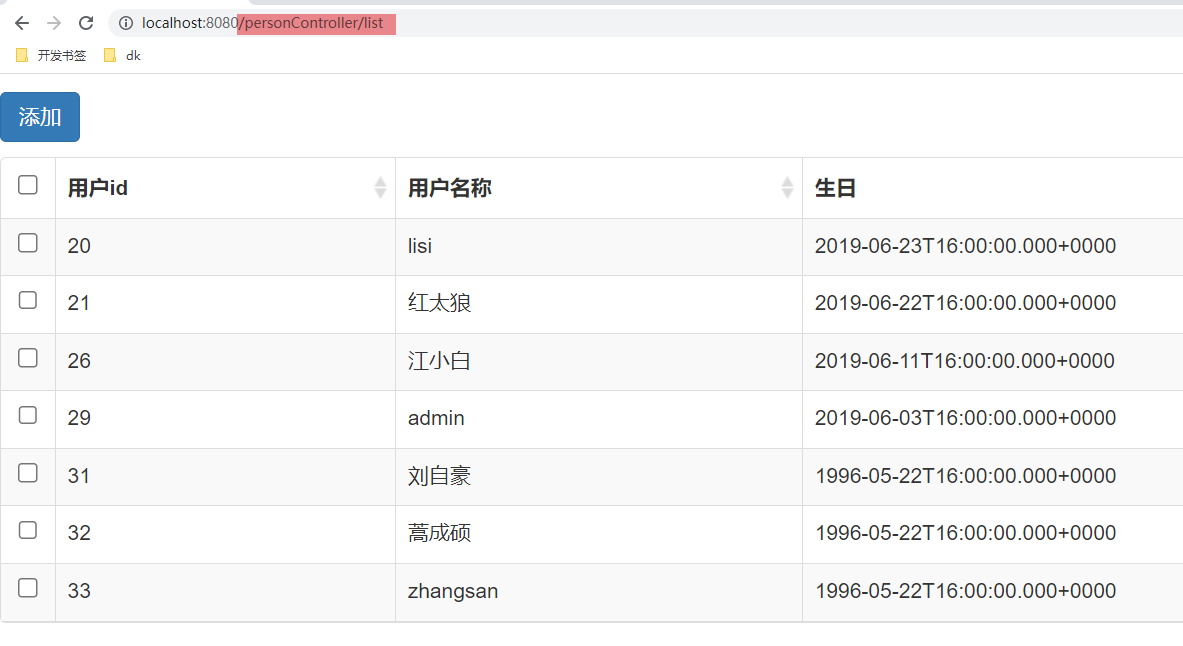

1681627827442

4.按钮权限控制

4.1 设置按钮无权限访问

普通用户登录成功之后是可以使用角色管理的添加功能的，这个时候如果我们不想让普通用户使用添加功能，那么就应该把权限控制到按钮。

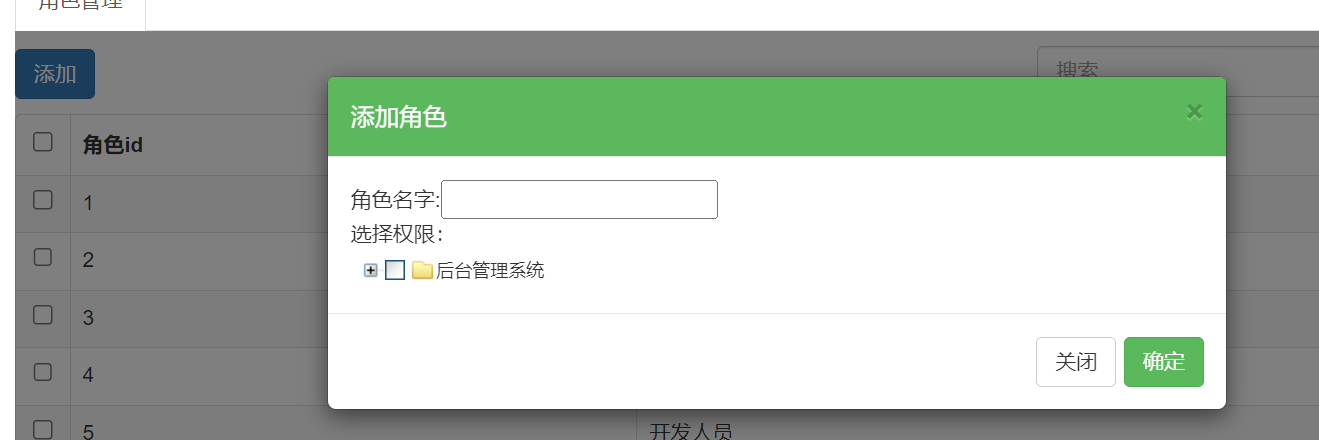

1681632581376

  • 使用管理员操作【资源管理】，增加【角色增加】的功能

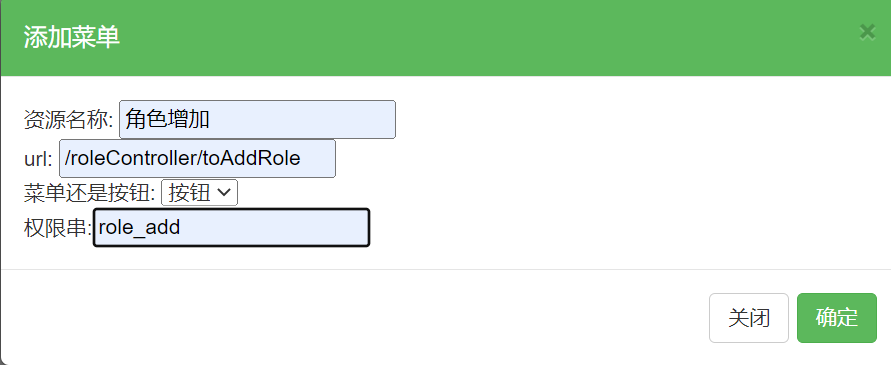

1681632735341

  • 使用管理员的角色管理为自己增加【角色增加】功能

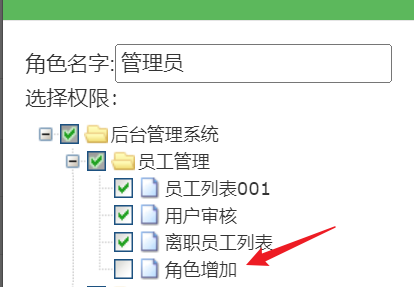

1681631068768

  • 在ShiroConfig中增加【角色增加】代码
1
2
//增加角色配置
map.put("/roleController/toAddRole","perms[role_add]");

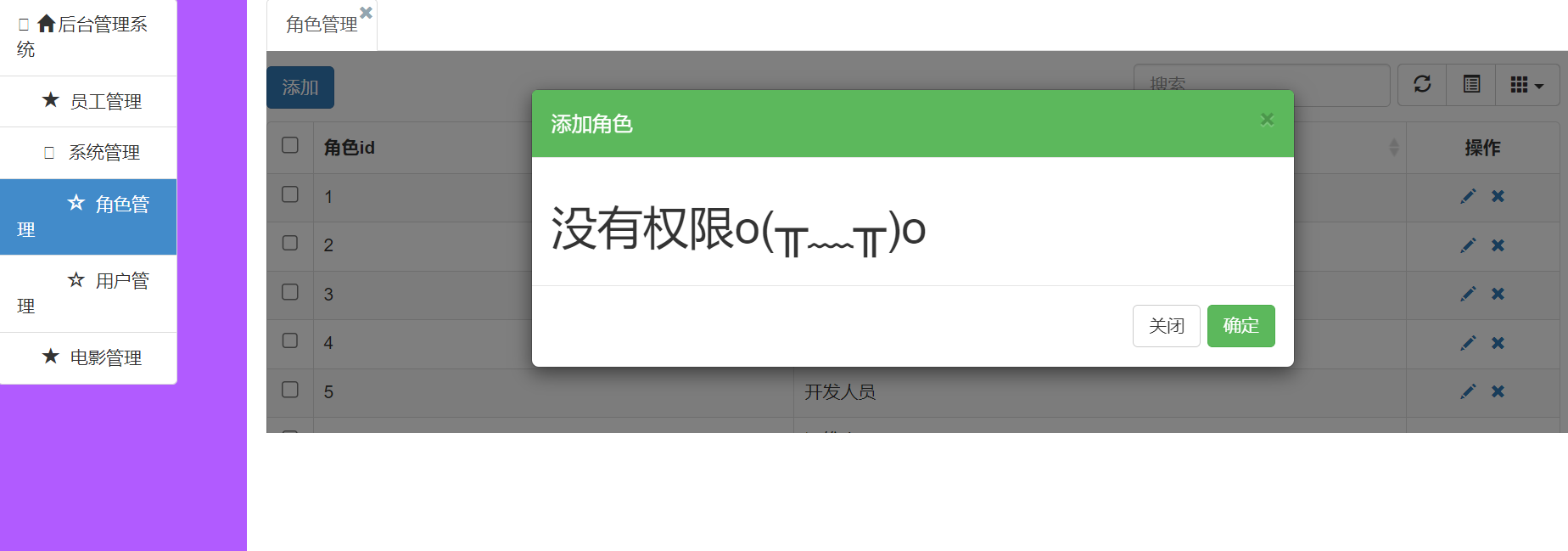

1681632434493

4.2 隐藏按钮选项

  • 导入java包
1
2
3
4
5
6
7
<!-- thymel对shiro的扩展坐标 -->
  <dependency>
      <groupId>com.github.theborakompanioni</groupId>
      <artifactId>thymeleaf-extras-shiro</artifactId>
      <version>2.0.0</version>
  </dependency>

  • 添加ShiroDialect配置
1
2
3
4
@Bean
public ShiroDialect shiroDialect(){
	return new ShiroDialect();
}
  • d导入命名空间以及在按钮处添加shiro标签
1
2
3
4
5
<html lang="en" xmlns:th="http://www.w3.org/1999/xhtml" xmlns:shiro="http://www.w3.org/1999/xhtml">

<div id="toolbar" shiro:hasPermission="add-role">
    <input type="button" value="添加" onclick="toAddRole()" class="btn btn-primary">
</div>
  • 测试

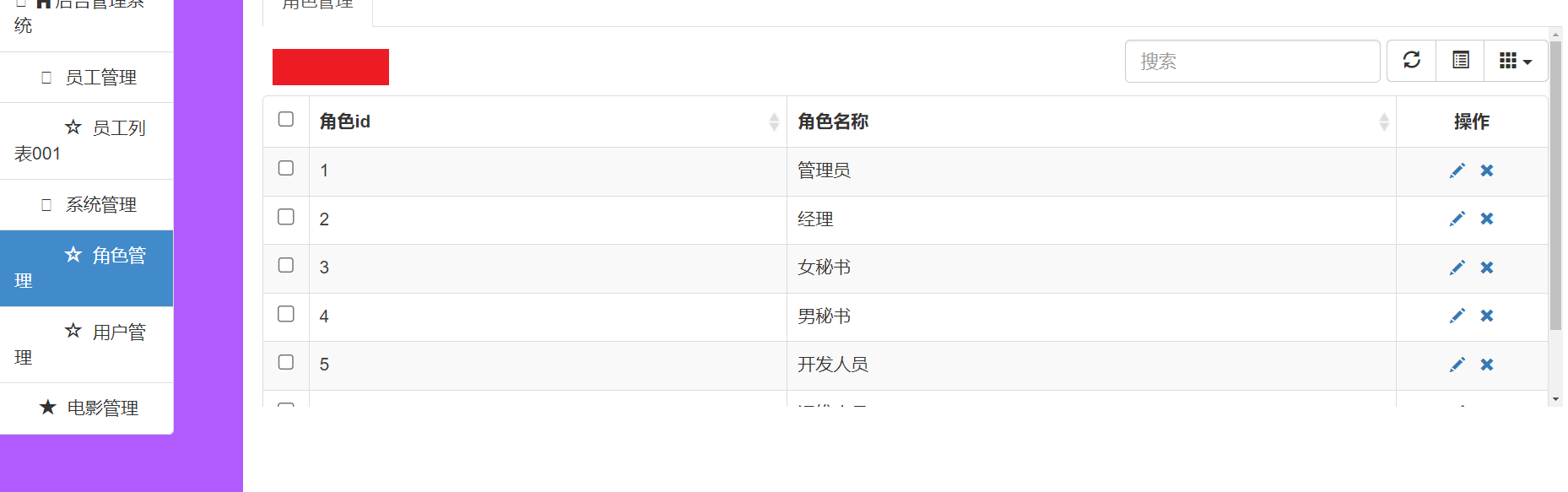

1681634342078

4.3 去除重复菜单

  • 使用admin登录系统后发现，针对于角色增加功能重复

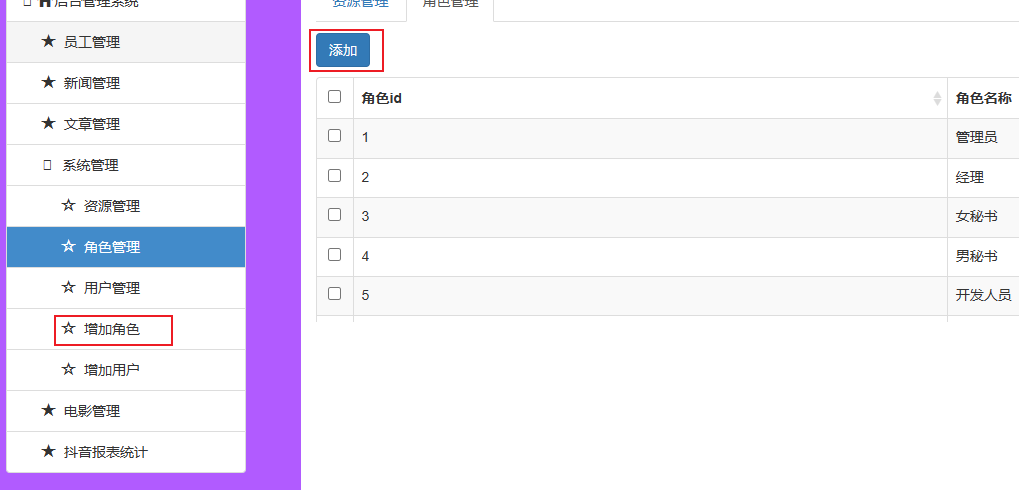

1681634662281

  • 解决：修改查询菜单sql语句，加入menu表中button判断条件即可
1
2
3
4
5
6
7
8
9
10
11
12
13
<!-- 根据用户id，查询用户所拥有的权限 -->
  <select id="findMenuByPersonId" resultMap="BaseResultMap">
    SELECT DISTINCT m.* FROM menu m
    LEFT JOIN role_menu rm ON m.id = rm.menu_id
    LEFT JOIN t_role r ON rm.role_id = r.role_id
    LEFT JOIN person_role pr ON r.role_id = pr.role_id
    LEFT JOIN t_person p ON pr.person_id = p.pid
    <where>
      <if test=" pid != null ">
        and p.pid = #{pid} and m.button=0
      </if>
    </where>
  </select>
  • 测试：

1681634844966
